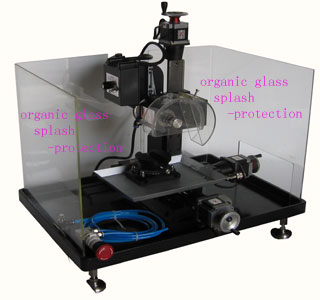

DSYJ150 low speed diamond saw equips with advanced digital micrometer and digital speed displaceis, it is perfect tool for cutting / dicing / slicing all kinds of materials upto 30 mm thickness, especially for brittle crystals, ceramics, and TEM samples.  DAC has tried every effort to make the low speed diamond saw at such high quality and low price. It makes every research lab affordable.

Typical Specifications

• Speed range: varies from 0 - 600 rpm DC with digital display
• Power: 110 and 220 AC switchable for worldwide use.
• Hight toque DC motor to allow multi-blade cutting.
• Position accuracy: 0.005mm
• Max. travel distance: 25.4 mm by LCD digital micrometer ( 50 mm with adjusting sample holder)

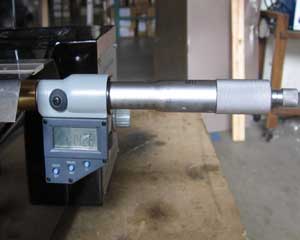

• Water-proof LCD digital micrometer with reading of  0.001 mm and accuracy of 0.003 mm
• Max wheel saw: 4" diameter
• Automatic shut off: allow the saw to run unattended.
• Warranty: two years
• Package dimension: 19" x 15" x 15"
• Shipping weight:   38 lbs



This is a SiC blade: 4" x 0.35 mm x 0.5" arbor for cutting nonferrous metal materials, such as superalloys.

This is a Al2O3 blade: 4" x 0.35 mm x 0.5" arbor for cutting ferrous metal materials, such as iron and steel.

This is a full sintered diamond blade: 4" x 0.35 mm x 0.5" arbor for cutting crystals and ceramic materials

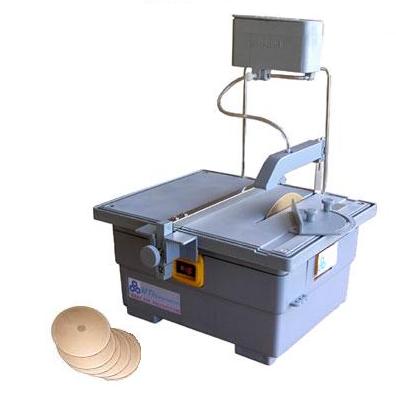

The DMT6 cut-off saw is the all purpose, full-size, full feature table saw for sample preparation of all materials.  It's able to professionally handle large scale projects but precise enough for fine detail work. Imagine cutting metal cames including zinc and copper, plastics, and some woods on a saw that can also cut tile, ceramics, glass, stone, and more.

Key Features: Sturdy and Accurate The Aluminum surface is sturdier, longer lasting and won't corrode when used wet. With the included fence you make more accurate cuts so projects will fit better.  Large Work Surface The 10" x 12" work surface provides plenty of work space for your larger projects while taking up a small portion of your work bench. Quick and Easy No hassle product assembly takes only minutes. Operation is easy and straightforward. Changing blades takes only minutes. Use Wet or Dry The MT-6 cut-off sw comes with the five 6.5 " Diamond Impregnated Blades to wet saw crystal rough, ceramic, stone, glass, and other mineral based materials.  With optional General Purpose Blades for dry sawing non-ferrous soft metals, plastics, and some woods.  Converts to Router/Shaper with optional Grider conversion kit at only $50 The MT-6  cut-off saw quickly and easily converts to a wet or dry shaping tool. The motor is encased in a cleverly designed base that allows it to operate with the motor shaft either vertically or horizontally by optional  the conversion kit. The MT-6 Saw does the work of several individual machines at a fraction of the cost and frees up your work space. Available in 115V and 240V The MT-6 cut-off saw is in 115 VAC and 230/240 VAC is available upon request.. Five  6.5 " Dia. x 0.4mm thickness impregnated diamond blades included for immediate use

Product Uses: Saw stained glass metal cames. Make clean, tight joints on all your metal came projects. Cut-off small samples for metallography analysis Cut-off glass, ceramic and crystal rough before polishing Make precision cuts for professional results. Create custom wood projects and parts. Use for material research laboratory.

Product Specs: Standard package Includes: Motor unit, base, table housing with metal table insert, Five  6.5 " Dia. x 0.4mm thickness impregnated diamond blades, blade guard, blade arbor, fence Coolant reservoir and flow control, an coolant drain and plastic pipe instruction guide for operation. Size: 12" wide x 10" deep x 6.75" high Motor Type: Permanent Magnet AC Torque: 31 oz.-in. (.213 N/M) RPM: 2800 Blade type:    6.5" diameter cutting blade with 0.5" arbor. Max. cutting depth: 1 1/8" (28.5 mm) For even more product information, read the User's Guide. The MT-6 cut-off saw is in 115 VAC and  230/240 ACV are available upon request.. Shipping dimension: 20"x17"x14"(510mm x 430mm x 360mm) Shipping weight :40lbs(18kg) Two Year Full Confidence Warranty

Optional Grinder Covresion kit

Make Motor vertical

Change the trim saw into a grinder / shaper

Manual 4" Diamond High Speed Cut-off Saw with Vise and 5 pcs of 4"Dia x 0.35 mm x 0.5" Arbor Impregnated Diamond Cutting Blades

Features 4" Manual Cut-off Saw is the perfect tool for quickly cutting valuable materials, such crystal rough, ceramic, metal rod and almost any material before lapping and polishing. The saw table is flat so it is easy to trim oversized slabs and removable so clean up is easy.  The sturdy table measures 6" X 10", easy to operate. The saw housing is made of unbreakable cross-linked polyethylene - No Rusting, No messy oil, uses water only. The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra thin diamond blades and it is powerful enough for impregnated diamond blades.   Speed varies from 400 -3250 RPM Max. cutting depth: 1" (25.4 mm) Comes with 5 pcs of impregnated diamond blade of 4" Dia x 0.014" (0.35 mm ) thickness x 1/2" arbor, as well as a vise which allow you keep sample smoothly. Voltage: 110V AC  ( in order to use at 220-240V , you need a transformer 240V-110V , Shipping dimension: 16" x 13" x 11" Shipping weight :16lbs Two Years limited warranty   4"Dia x 0.35 mm x 0.5" Arbor Impregnated Diamond Cutting Blade

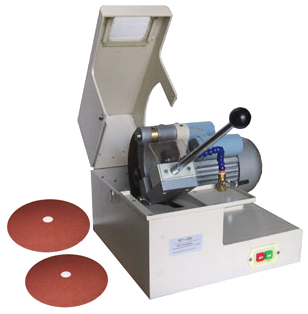

The DMT200  is a heavy duty bench top wet abrasive cut-off saw.  It is designed for cutting metallographic sample faster and safer at affordable price. 10" SiC or diamond cutting blade is used for cutting all kinds of materials with max. sampel size of 30 mm x 30 mm.  A coolant system is built in to avoid sample overheated and water splashed during cutting.

Product Specs: Motor:  AC Motor with  1.1 KW Input Power: 220V AC single phase Motor Speed:   2800 RPM Cutting Blade:  Two 10" OD x 1.25" ( I.D) x 2 mm (Thick) SiC cutting blade  included. Max. Cutting  Section:      30 mm x 30 mm   Mount Vise:  T clamp vise is included for quick tigten or release Cutting driving:  Manually by push up dring rod on sample vise.  It is more safe and faster than push down cut-off saw Coolant system:  Tap water,  Inlet flow is adjustable in front panel, and outlet is at the bottom of machine Machine Dimension:  650 x 450 x  400 mm Net Weight:              60Kg ( 132 Lb) Shipping dimension:45" x 35" x 30" Shipping weight:160lbs One Years Full Confidence Warranty

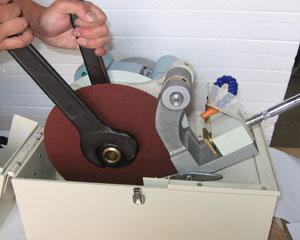

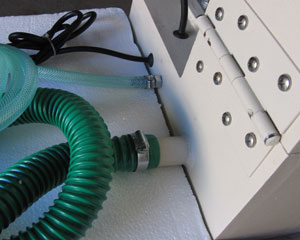

How to change cutting blade               How to mount sample                   Water inlet & drain pipe

Packaging List:

S/N	Name	Quantity	Note
1	Main Machine	1	DMT200 Cutting Machine
2	Cutting Blade	2	Silicon Carbide
3	Wrench	2	36 mm and 46 mm

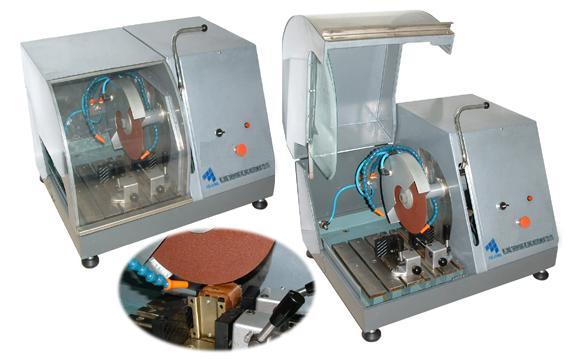

The DQG50 is a heavy duty bench top wet abrasive cut-off saw.  It is designed for cutting metallographic sample faster and safer at affordable price. Double quick vises are included to allow you tighten sample easy and quick.  10" SiC or diamond cutting blade is used for cutting all kinds of materials with max. sampel size of 50 mm in diameter.  A coolant system is built in to avoid sample overheated and water splashed during cutting.

Product Specs: Motor:  AC Motor with  1.5 KW Input Power: 220V AC single phase Motor Speed:   2800 RPM Cutting Blade:  Two 10" OD x 1.25" ( I.D) x 2 mm (Thick) SiC cutting blades included.  Max. Cutting  Section:     60 mm in diameter Mount Vise:  Double T clamp vises are included for quick tigten or release Stainless steel working plate to protect from corrosion Cutting driving:  Manually by push down driving arm. Safety cover is included to ensure safe cutting Coolant system:  Cooling water injects in both side of blade to ensure max. cooling.  Tap water  Ior nlet flow is adjustable Machine Dimension: 750mm x600mm x550mm (30 " x 24 " x 22 ") Net Weight:  65Kg ( 132 Lb) Shipping dimension:45" x 42" x 35" Shipping weight:300lbs One Years Full Confidence Warranty

Packaging List:

S/N	Name	Quantity	Note
1	Main Machine	1	DMT200 Cutting Machine
2	Cutting Blade	2	Silicon Carbide

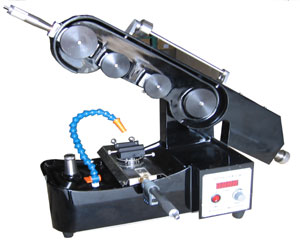

SXJ-2 precision wire saw is designed to provide a very smooth cutting for almost all kinds of materials, especially for very fragile crystals and substrates such as SrTiO3, YVO4, and GaAs etc. by using either a diamond impregnated or a plain wire blade with abrasive slurry. It is an ideal saw for your needs of cutting valuable delicate and fragile crystals. It is a very helpful for your R&D and laboratory applications

Specifications:

• Stage traveling distance: Max. 50.8 mm or 2" ( New feature ) also, 360 degree rotating and 30 degree tilt stage included
• 2" Digital micrometer head is installed and  Traveling position accuracy: +/- 0.003 mm  ( 3 microns)
• Size of sample stage: 80 x 51 mm
• Wire traveling speed: 0-5 mm/sec.
• Cutting thickness: Up to 50 mm
• Power Supply: A/C 110V or 220 V selectable
• Package dimension: 36" x 20" x 21"
• Shipping Weight: 120 Lbs
• Caution:  Please use anti-corrossion coolant for cuting ( Lube-cool 150 suggested), never use water for cutting  cooling)

•

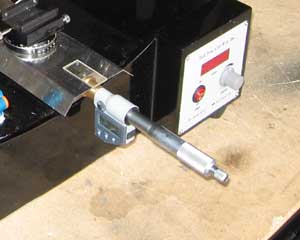

  2" precision digital micrometer head with 2" ( 50 mm) travel distance and 0.003 mm accuracy

Standard Package with the Machine:

Part No	Description
DSXJ2	SXJ-2 Wire Saw with power supply
DSXJ2-3	300  Tile Sample Holder
DSXJ2-4	Cross Vise for Holding Sample
DSXJ2-5	900 Sample Mount
DSXJPW3	840 mm long, 0.35 mm dia. Diamond Loop Wire
DSXJ2-6	Driving Belt
DSXJ2-7	Wax Bulk
DSXJ2-8	Graphite Block
DSXJ2-9	Screw Driver
DSXJ2-10	Fuse
DSXJ2-11	AC Power Cord
DSXJ2-12	Operation Manual
DSXJ2-13	Hoses

Optional Accessories:

DECO417	110V Immersion water pump for coolant circulation (a voltage converter included for customers with 220-240V power supply)	*Optional
DLube cool	Lube Cool 150 Lubricant, 1 Oz/bag	*Optional
DSXJOPW2	840 mm log, 0.2 mm dia. Plain Steel Loop Wire	*Optional

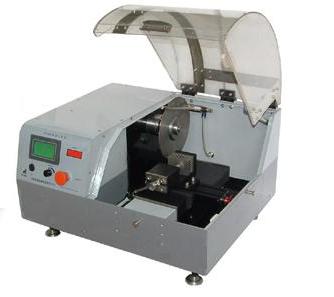

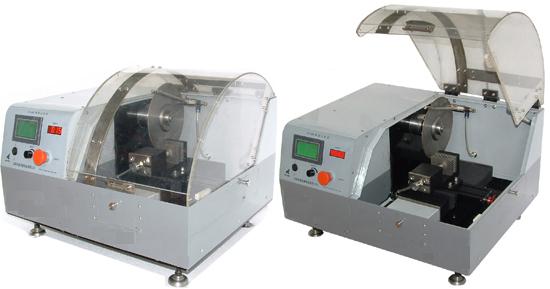

DSYJ200 automatic diamond saw  is designed for precision cutting all type of materials up to 3 " diameter. The saw is equiped with 8" diameter diamond blade and touch-push panel to achieve automatical control.  It is perfect cutting tool for metallurgical, ceramic and materials research laboratories

Features:

• 1 HP high torque DC motor
• 1" dia spindle and 2" flange to accept 6 - 8" dia diamond blade
• Variable blade speed: 100-4500 RPM with digital display
• Cutting capacity:  3" Deep x 4" L x 3.5" W
• Programmable Y and X axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision.
  • X  axis is for cutting feed which has Max. travel distance of 120 mm amd adjustable speed from 1.0 mm/ minute to 20 mm/minutes
  • Y  axis is for controlling thickness of slices, which can be programed up to 90 mm distance.
• Quick lamp is included to make sample mount easy and fast
• Protective splash cover with electronic safety interlock
• Recirculating coolant system with adjustable nozzles
• One 8" diameter x 0.025mm thickness and 1"airbor sintered diamond blade is included for immediate use
• Dimension:  622mm x523mm x460mm
• Shipping weight:  65 Kg
• Two (2) year warranty - parts and labor

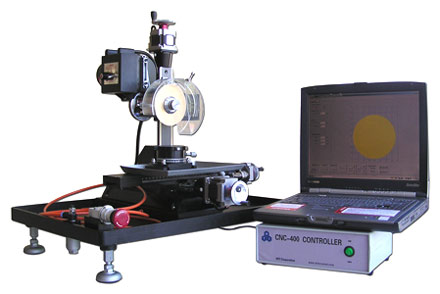

DEC400 dicing / cutting saw is designed for dicing and cutting almost all kinds of materials up to 4" diameter wafer or 8" L x 4"W x  1" T components at low cost.  EC400 saw is fully controlled by a computer (any computer of 486 or up to IBM compatible) with position accuracy of 0.01 mm or better. The sample stage with two-angle adjustment comes with the machine, which allows customers to cut materials at desired angle with +/- 0.5^o tolerance.   EC400 is a precision and cost effective dicing and cutting solution for R&D Lab in Materials and Micro-electronics research field.

Features of EC 400 Dicing / Cutting Saw

• 1/2 HP high torque DC motor with variable speed up to 3,000 rpm, which can be operated at the voltage from AC 110V to 240 V.
• The cutting sample can be moved by either program or manual with X,Y, and Z 3-dimension motion up to X = 8", Y=4" ,and Z = 4"
• The CNC controlled step motor operates at 0.0025 mm moving resolution and 0.01 mm position accuracy.

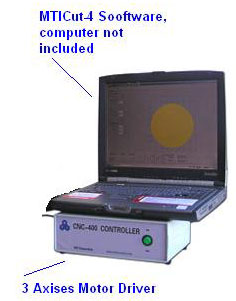

• An user friendly software, MTICUT4 is included  which allows customers to cut or dice samples automatically via using 486 IBM compatible computers, which must be installed with Window's 98 or Windows Me. ( Window's 2000 or Window's XP system will not work so far ).   You can use an old computer to operate EC400.  Window 98 software disk included
• One 4" dia x 0.35 mm thick fully sintered diamond blade, and two pairs of flanges with 62 mm dia. ( for dicing ) and 42 mm dia ( for deep cutting) Included.
• Assemblies of water jetting , draining, and splashing protection are Included
• Vacuum chuck and alignment microscope for easy wafer dicing are available as optional parts
• Dimension of 580 L x 560 W x 660 H mm, and net weight of 28.5 Kg
• Shipping dimension :43"L x 30"W x 34"H
• Shipping weight : 150 lbs

Smart Tip and Options ( please select from optional parts below )

• Please use anti-corrosion coolant during cutting.  You may select our LubeCool150  lubricant as coolant , and build up a small circulation system with an immersion pump (ECO 417)  , which will make diamond blade cut more efficient and keep the machine from corrosion.  Also, you can use " radiator coolant for cutting, which is available at any Auto store.  Please never use water as cutting coolant during cutting, which will damage the machine.
• For dicing Si, Ge, GaAs and quartz, LiNbO3 wafers , you may consider to use 100 microns ultra-thin diamond blade to achieve less kurf
• In order to make accurate aligement when cutting wafer, you shall choose 25x stereo microscope with support frame
• For mounting wafer easily and quickly, you may also choose a vacuum chuck ( P/N ECO402 ) and adhensive film
• Laptop computer with Window's 98 and MTICut-4 software is available upon request.

Standard Package:

1. A cutting machine with a spindle motor and three step motors
2. One three-axis step motor driver with 3 cables to the CNC machine , and one cable to the computer system. (No any computer included)
3. Three-axis step motor driver is included
4. DMTICUT4 software works under Window's 98 or Window's Me.
5. Necessary accessories for immediate operation as the following list.

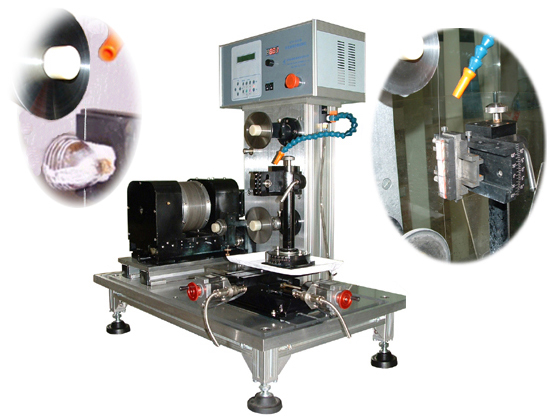

DSTX602 precision doamomd wire saw is designed to provide smooth cutting or slicing for all kinds of materials, especially for very brittle crystals, such as SrTiO3, ZnO,  LiNbO3 and GaAs etc. up to 6" diameter.  It cuts crystal by a diamond impregnated wire ( 0.28 mm diameter) which move repeately backing and forward with automatic controller. It is equipped with a sample holder with htree angles adjustable      DSTX-602 is a ideal cutting tool for your R&D and laboratory of crystal and ceramic materials

Specifications: Heavy duty Aluminum alloy structure Automatic control for moving speed of diamond wire,  feeding speed of sample stage and slicing thickness. The sample stage can be adjusted in three angle or make precision orientation Max. travel distance of sample stage is 12".  Traveling position accuracy: +/- 0.01mm Max. cutting diameter is 6" diameter by adjusting guiding wheels            Wire Moving speed: 0-5 mm/sec.  Two rolls  of diamond wires  ( 64 meter long x 0.28 mm diameter ) are included for immediate use Power Supply: A/C 110V or 220 V selectable  Package dimension:  810mm x 800mm x 800mm (32"x31.5"x31.5") Shipping weight:       150  kg (303 lbs)

Note:

• We don't keep this diamond wire saw in stock,  please allow 4- 6 weeks to delivery after order.
• Technical training is avialable in our laboratory in China only to keep cost down
• Caution:  Please use anti-corrossion coolant for cuting ( Lube-cool 150 suggested), never use water for cutting  cooling.
