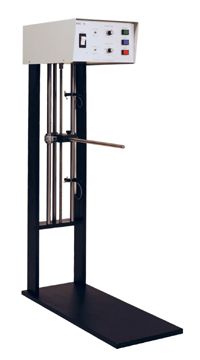

RDC Dip Coating Machine These machines have been developed for laboratory dip coating of modern liquid photoresists such as the Seno 1000. They will coat a whole host of other items as well as PCB laminates and metals. The insertion speed and removal speeds are adjustable as is the insertion time. RDC 10 RDC 15 Stroke length: 0 - 450 mm 300 - 800 mm Maximum load: 1.5 kg 5 kg Weight: 15 kg 20 kg Weight: (W x L x H): 20 x 40 x 67cm 25 x 65 x 101cm Insertion speed: fixed or adjustable Drawing speed: 0.1 - 0.5 m/min Dipping time: 1.5 - 30 seconds Power supply: 230 V, 50 Hz, 100 VA

 딥코터 (DIP COATER)

DTL0-01 Desktop Dip Coater is designed for R&D Lab to prepare various optical or  epitaxial films from liquid solution at lower cost . It features with

•  Pulling rate varies from 0.005 mm/sec. to  3.8 mm/ sec.  ( 0.3- 228mm/minut)
•  Digital display speed with +/-0.05% accuracy
•  Pulling system is operated by PM brushless DC motor with precision speed controller
•  Compact frame size:   210 mm  ( L ) x 250 mm  (W) x 250 mm (H)
•  Worldwide AC power:  Input voltage switchable at 110V AC or 240V AC
• Liquid solution can be placed under the puller frame to dip coat small sample with dimension < 3"W x 4"L
• Externalframe is included, which allows you extend pulling height  as you wish from external frame( as the shown in picture )
• Compact design with dimension: 210mm (L)   x 360mm (width) x 480 mm ( Height )
• Net Weight: 45 Lb
• Shipping dimension:18" x 19" x 25"
• Shipping weight: 60lbs

Customized pulling rate from 0.001 -  100 mm/ sec. is available upon request at extra cost

Packaging List:

S/N	Name	Quantity	Note
1	Main Machine	1	DTL0-01 Desktop Dip Coater
2	Power Line	1	110V / 240V AC  by selective switch
3	External Frame	1
4	Sample Holder	2
5	Cup Holder with guide poles	1
6	Glass Cup	1
