Fiber Tower¢â Series (·¹ÀÌÀú¸¶Å·±â/·¹ÀÌÀú¸¶Ä¿)
Q-Switched Fiber Laser Marking Systems are a safe,
state-of-the-art, low-cost Direct Part Marking (DPM) alternative for laser
marking with Nd:YAG and Nd:YVO4 Lasers.
The Fiber Tower¢â Series Q-Switched Fiber Laser Marking Systems are a safe,
state-of-the-art, low-cost Direct Part Marking (DPM) alternative for laser
marking with Nd:YAG and Nd:YVO4 Lasers. Components include a q-switched fiber
laser with scan head, PC with control board, power supply, software, and a laser
safety enclosure.
Standard configurations of the FiberTower¢â marking systems allow for many
different options to meet any production need. Available options include
programmable Z-axis for focal height adjustments, rotary indexers for
circumferential marking, rotary dial tables for simultaneous mark and lase
operation and X-Y motion systems for increased marking areas. Additional
features include ease of installation allowing for quick start-up and
graphical-based programming for a minimal learning curve. Requirements beyond
those listed above will be quoted upon request.
Fiber lasers are a great leap forward in laser technology. Our fiber
lasers are more easily integrated into industrial processes in comparison with
conventional lasers due to:
- Standard wall plug operation and high electrical efficiency
- Single mode fiber delivery line
- Fiber delivery up to 50 meters (for CW lasers)
- Up to 200 Watts optical output power both CW or q-switched
- High quality focusable beam (TEMoo)
- High repetition rate
- Optimized pulse duration
- Exceptionally high reliability
- Maintenance-free operation
- Very high MTBF (100.00 hours typical on diods)
- >30,000 hours estimated maintenance-free operation
- Excellent beam quality (M2 < 1.05)
- Linear polarization options
- Compact package
- No water cooling
Blackstar: Silicon Dicing System

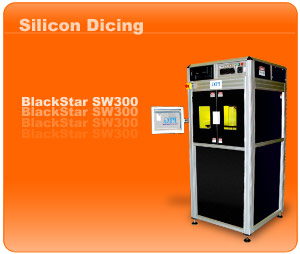

BLACK STAR¢â
Zero Width Dicing Technology¢â
BLACK STAR¢â is a latest development of Zero Width Dicing Technology¢â
(ZWDT¢â) for semiconductor wafers of different thicknesses and composition.
Parameter |
Value |
Wafer dicing time |
3.5 min |
Material |
Low-K |
Street width |
Thickness dependant |
HAZ |
0 |
# of passes required |
1 |
Micro Cracks |
None |
Chipping |
None |
Edge strength |
2 times stronger then conventional dicing |
Clean Roam Compatibility |
Class 1000 or 10000 |
Water Cooling |
None |
LASER
WAFER
- Wafer thickness - 50µ to 700µ.
- Wafer size - 12" max.
- Frame: Standard types (8¡± or 12")
- Holding tape: standard low tack
VISION SYSTEM
- Two-level Magnification
- Optical zoom
- Type: Pattern Recognition with
- Automatic alignment
MOTION SYSTEM
- 4 axis direct drive servo platform.
- Working area 500 x 500 mm
- Maximum axis speed 500 mm/s
FiberTower XP Plus CM |
FiberTower XP Plus RT |
|
|

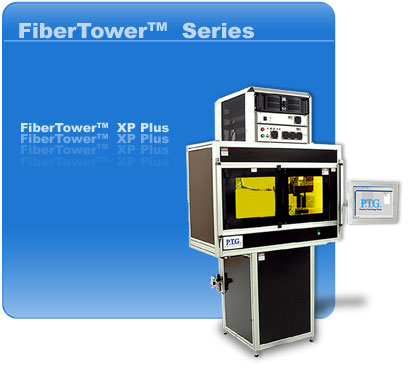

The FiberTower XP Plus CM is ideal for Circumferential Marking
applications:
- Handles various flat and oversized parts
- Equipped with foot switch or light curtains
- Replaceable rotary attachment for circumferential marking
- Optional side doors for long parts
- Optional bar code scanner or CCD camera for quality verification
- Exhaust outlet
|
The FiberTower XP Plus RT includes a rotary table for additional
marking aplications:
- High throughput system with a 24¡± rotary dial table
- Equipped with dual switch buttons
- Optional I/O for inline automation
- Optional side doors for long parts
- Optional bar code scanner or CCD camera for quality verification
- Exhaust outlet
|
FPD Laser Cutting Systems (·¹ÀÌÀúÄ¿ÅÍ)

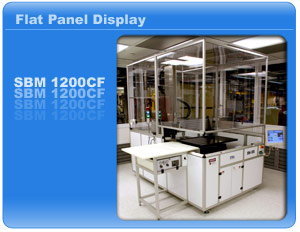

SBM1200CF
We provide the state-of-the-art non dimensional laser scribing
and dicing solutions to customers in FPD and Semiconductor industries throughout
the world.

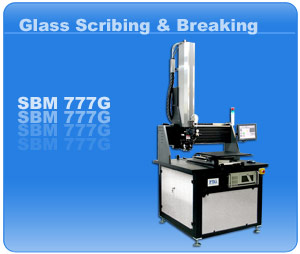

SBM777G
The first in
the world laser scribing system with simultaneous scribe and break
capabilities for singulation of Flat Panel Displays
Advantages of our Industrial Laser Cutting and Engraving Systems over
Competitors'
- Direct drive structure means no belts, no rotary encoders,
no gears, no wear, higher acceleration, higher cutting speed, and increased
accuracy due to no belt vibration.
- We can offer high power lasers, due to the use of direct
drive, while our competitors can only use low power lasers because weight
affects accuracy on belt systems.
- 12" clearance under the cutting head with 2" of Z-travel.
Competing machines have no clearance.
- Enclosed laser beam protects optics and mirrors from
environmental contamination
- Purged gas: compressed air or Nitrogen (N2) protects the
cutting head
- Sealed, high-quality linear bearings lubricated for life
- High-pressure cutting nozel with Oxygen (O2) or Nitrogen (N2) assisted gas
for high-speed, clean cutting
- Software aligns the perpindicularity of the X and Y axes
- Computer-controlled Z position
- Easily replaceable focus heads for 2.5", 3.75", and 5.0" focal lengths
- Replaceable 51" x 52" nesting baskets for different support surfaces:
aluminum grating, honeycomb, and vaccuum holding tables
- Extra-large aperture on the beam benders and focusing optics allow
connections of up to 1,500w CW or 3,000w pulsed lasers
- Forced air cooling of the beam benders and focusing optics for stability
- Ability to use the built-in sealed laser or standalone high-powered laser
- The latest generation of motion controllers integrate laser control
functions, provide the fastest processing speeds, and optimize trajectory
- Inline integration is possible because there is no shaft and it is not an
enclosure
- Our head is industrial, fully sealed, and capable of high pressure
- For metal applications our systems are equipped with 45 degree polarization
optics to ensure high-quality, even cutting in both directions
- For reflective materials, we use an optical isolator to protect the laser

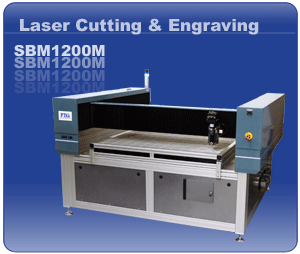

The SBM 1200M Laser Cutting and Engraving System combines
flying optics with a precision Direct Drive motion system. System provides
highly accurate cutting, welding, engraving and marking capabilities for
multiple materials.
- Ease of installation allows for quick start-up.
- Handles continuous roll and standard sheet size stock.
- 4' x 4' cutting area.
- Can be equipped with sealed laser from 50 to 1000 watt.
- More on the SBM 1200M

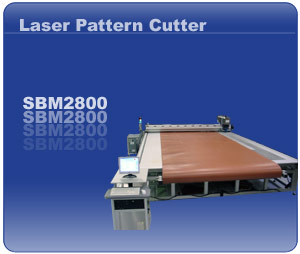

The SBM2800 is a Large format Laser Patten cutter for ship
building, automotive and aerospace industries.
- Extra large cutting area 127.5¡± x 192¡± (3048 x 5067 mm).
- System is designed to cut Template Paper, Plywood, and Cypress Board at the
same time on the same machine.
- Automatic feeding and take-up function for paper rolls is optional.
- More on the SBM2800

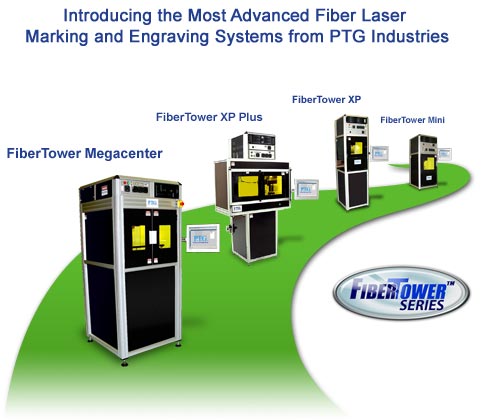

Fiber Tower¢â Series of fiber laser marking and engraving
systems
- The FiberTower systems are capable of meeting your Direct-Part-Marking
needs. Simply plug the compact system into any 110VAC outlet and you are in
business producing high quality marks on production parts.
