The video of operation for spin coater with Our high quality click here.

$B@:(B$BL)(B$BEY(B$B%G(B$B%8(B$B%?(B$B%k(B $B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B$B!*(B$B5v(B$BMF(B$B8m(B$B:9(B±$B#1(BR.P.M$B6q(B$B8=(B$B!*(B

$B@$(B$B3&(BTOP$B!*(B$B%3(B$B%9(B$B%H(B$B%@(B$B%&(B$B%s(B$B!*(B

Spin Coater : ACE-1020 & TOP-8

spin coater/spincoater/spin coating system/????

Spin Coater (ACE-200)

spincoater / spin coater
End-User Type

spin coater, spincoater, ????

Spin Coater (TOP-8)

?????? ????, golve box spin coater, spincoater, spinner

Glove Box Type(ACE-200)

Please check to our attachment spin coater file for Data sheet. click

FEATURE

spin coater/spincoater
      High Precision spin coating systems (spin coater)

      Compact & desktop spin coater, High & controllable speed.
      Our spin coater, Simple step programming, High accuracy, Speed R.P.M is Up & down free,
      International Competitive price, 100 steps and 100 recipes stored.


   Dong Ah spin coater offers most high quality, portable spin coaters designed specifically for lab and R & D.
   The other spin coating activities.
   Our design is very compact as maintenance are very easy.
   An fifteen inch bowl and custom design are available.
   Our spin coater applies always uniform, piece free coatings with precision.

Features

1. Our spin coater, You can speed up and down freely 0 ~ 50 to 8,000 R.P.M.
2. The auto encoding function in this spin-coater guarantees you strong power and precision.
(applied and developed for the first time in history and exported all over the world in a great success.)
The encoding function in this spin-coater minimizes the chance of being out of order and makes A/S convenient. (The compact of inner and outer devices realized)
3. Adopted a motor which overcomes the speed limit of existing motors and gain a strong power and speed capacity of max 8,000 r.p.m.
4. Specialized enough to cover even a 18-inch ball and a 12-inch extra-large chuck (Option)
5. Most thinly produced in height, which enables you to use with ease globe box. (Height 200 mm : Min 180 mm possible)
6. Spin coater With 100 step and 100 programs (recipes), you can gain the data freely which you want.
7. The programs of the spin controller are made easy enough to be used by beginners. (Digitalized)
8. You can wash and clear balls very easily and conveniently.
9. Compared to foreign products, this spin coater costs a reasonable sum, considering a variety of functions and excellent capacity.
10. Safety device: If chuck and wafer & plate are not positioned in a vacuum, it will stop working. Developed and produced first for the safety of operators.

11. As you see both the initially-set R.P.M and the actual R.P.M numbers, you can check the degree of revolving precision every second. (attained high accuracy)

12. Spin coater Ball size is big enough for you to be excellent at spin-coating.
13. spin coater Option : Dispenser.
Communication port for external control using optional PC interface software for programming.

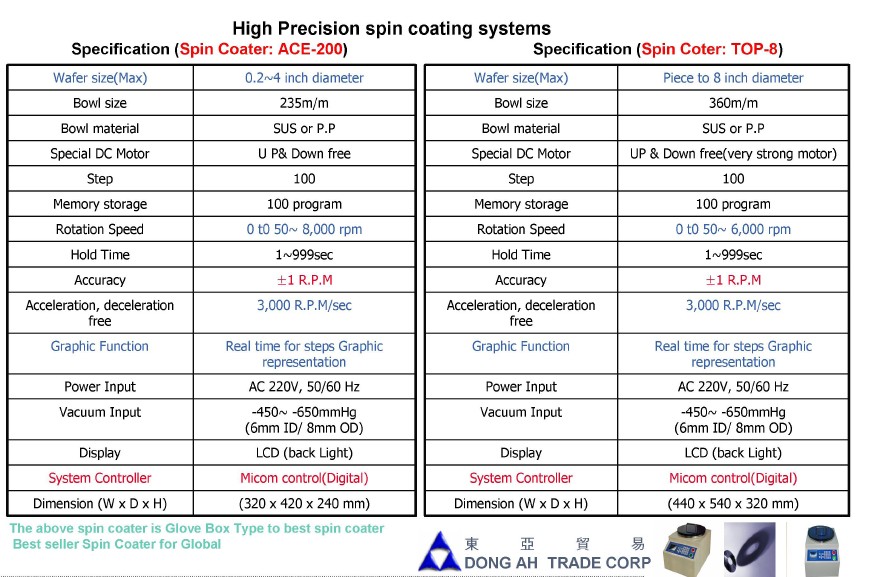

High Precision spin coating systems (spin coater)

$B!i(B Specification (Spin Coater: ACE-200) Low price

Wafer size(Max.)

1/2 ~ 4 inch under diameter

Bowl size

8" Bowl

Bowl material

SUS or P.P

Special DC Motor

Up & Down free

Step

100

Memory storage

100 program

Rotation Speed

0 to 50 ~ 8,000 rpm

Hold Time

1~999sec

Accuracy

± 1 R.P.M

acceleration, deceleration free

3,000 R.P.M/sec

Graphic Fuction

Real time for steps Graphic representation

Power Input

AC 110V, 220V, 50/60Hz

Vacuum Input

-450~-650mmHg (6mm ID / 8mm OD)

Display

LCD (Back Light)

System Controller

MCU (Digital Microprocess)

Dimension (W X D X H)

320 X 420 X 220 mm

The above spin coater is Glove Box Type to best spin coater

Best seller Spin Coater for Global

High Precision spin coating systems (spin coater)

$B!i(B Specification (Spin Coater: TOP-8)

Wafer size(Max.)

piece to 8 inch under diameter

Bowl size

360 mm

Bowl material

SUS or P.P

Special AC Motor

Up & Down free (very strong motor)

Step

100

Memory storage

100 program

Rotation Speed

0 to 50 ~ 6,000 rpm

Hold Time

1~999sec

Accuracy

± 1 R.P.M

acceleration, deceleration free

3,000 R.P.M/sec

Graphic Fuction

Real time for steps Graphic representation

Power Input

AC 110V, 220V, 50/60Hz

Vacuum Input

-450~-650mmHg (6mm ID / 8mm OD)

Display

LCD (Back Light)

System Controller

MCU (Digital Microprocess)

Dimension (W X D X H)

540 X 440 X 325 mm

The above spincoater is available check to real time Graphic by steps.

Our spin coater Demonstration(Operation) is here click.

e-mail : pcb@naver.com

Spincoater system Profiling (acceleration & deceleration free)

spin coater,spincoater,spinner

Reference Data to purchase for spin coater as follow :

1. SPIN COATER (MODEL: TOP-8) : Using to vacuum chuck 5 to 8 inch is very good.

2. SPIN COATER (MODEL: ACE-200) : Using to vacuum chuck 4 inch under is very good.

3. Our spin coater A/S is very simple(easy) to inside structure that only special spin motor + power supply + simple controller (Main board).

Therefore if your problem to our supply to local change (very easy : motor or power supply or control board). of course operation is very easy but fuction is very high quality.

e-mail : pcb@naver.com

???? ???

Option: Dispencer (DATC-101)

Our spin coater Demonstration(Operation) is here click.

Manufacture by Dong Ah Trade Corp e-mail: pcb@naver.com

TEL : 02-868-0661 ($BBe(B)

spin coater, ????, DA-1020S, spin coater, ????, spincoater, spinner, ???,DA-1020, EXPORT ?????? ????, golve box spin coater, spincoater, spinner

spin coater (ACE-1020 series) spin coater (DA-1020 series) Golve Box function type (1020s series)

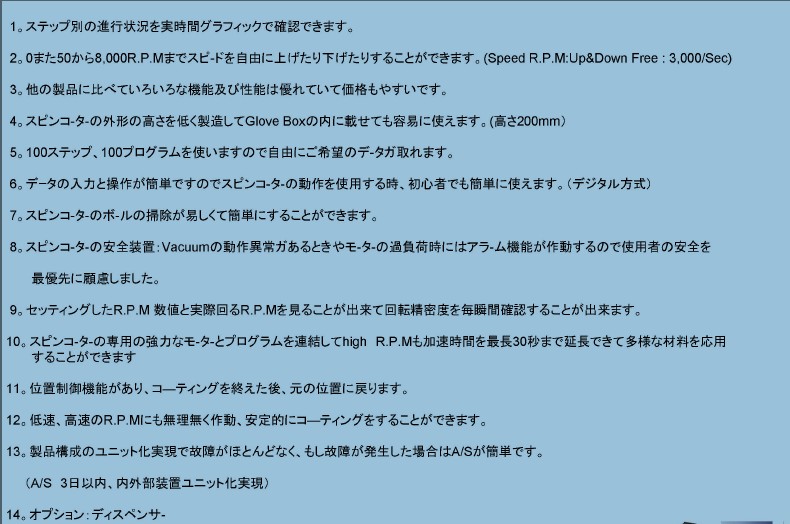

$B"#(B $BFC(B$BD'(B

$B#1(B$B!%(BØ$B$^(B$B$?(B$B$O(B50$B!A(B8.000RPM$B$^(B$B$G(B$B%9(B$B%T(B$B!<(B$B%I(B$B$r(B$B<+(B$BM3(B$B$K(B$BCM(B$B2<(B$B$2(B$B$7(B$B$J(B$B$,(B$B$i(B$B;H(B$BMQ(B$B=P(B$BMh(B$B$^(B$B$9(B$B!#(B

(Speed R.P.M : UP & Down Free)

$B#2(B$B!%(BA/S$B$,(B$B4J(B$BC1(B$B$G(B$B$9(B$B!#(B(A/S$B!'(B3$BF|(B$B0J(B$BFb(B$B!"(B$BFb(B$BIt(B$B!"(B$B30(B$BIt(B$BAu(B$BCV(B Compact $B2=(B$B6q(B$B8=(B)

$B#3(B$B!%(B$B%9(B$B%T(B$B%s(B$B%3(B$B%C(B$B%?(B$B!<(B$B$N(B$B9b(B$B$5(B$B$r(B$BGv(B$B$/(B$B@=(B$BB$(B$B$7(B$B$F(BWET STATION$B$J(B$B$I(B$B%0(B$B%m(B$B!<(B$B%V(B$B%\(B$B%C(B$B%/(B$B%9(B$BCf(B$B$K(B$BCV(B$B$$(B$B$F(B$B$b(B$BMF(B$B0W(B$B$K(B$B;H(B$BMQ(B$B=P(B$BMh(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$^(B$B$9(B($B9b(B$B$5(B180$B!A(B200$B-P(B)

$B#4(B$B!%(B100$B%9(B$B%?(B$B%C(B$B%W(B$B!"(B100$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B$r(B$B;H(B$BMQ(B$B$9(B$B$k(B$B$3(B$B$H(B$B$K(B$B$h(B$B$C(B$B$F(B$B!"(B$B<+(B$BM3(B$B$K(B$B4j(B$B$&(B$B%G(B$B!<(B$B%?(B$B$r(B$BF@(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$k(B$B!#(B

$B#5(B$B!%(BSpin Controller$B$N(B$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B$O(B$B!"(B$BAG(B$B?M(B$B$G(B$B$b(B$B

($B%G(B$B%8(B$B%?(B$B%k(B$BJ}(B$B<0(B$B:N(B$BBr(B)

$B#6(B$B!%(B$B%\(B$B!<(B$B%k(B$B$N(B$BA](B$B=|(B$B$b(B$B4J(B$BC1(B$B$K(B$B=P(B$BMh(B$B$^(B$B$9(B$B!#(B

$B#7(B$B!%(B$BB?(B$BMM(B$B$J(B$B5!(B$BG=(B$B!"(B$B@-(B$BG=(B$B$K(B$BHf(B$B$Y(B$B$F(B$BDc(B$B2A(B$B3[(B$B$G(B$B$9(B$B!#(B

$B#8(B$B!%(B$B0B(B$BA4(B$BAu(B$BCV(B$B!'(BVacuum$B$,(BChuck$B$H(B$B;n(B$BNA(B$B$K(B$B$D(B$B$+(B$B$^(B$B$i(B$B$J(B$B$1(B$B$l(B$B$P(B$B:n(B$BF0(B$B$,(B$B=P(B$BMh(B$B$J(B$B$/(B$B$J(B$B$j(B$B!"(B$B1?(B$B1D(B$B

$B#9(B$B!%(B$B%;(B$B%C(B$B%F(B$B%#(B$B%s(B$B%0(B$B$K(B$B$J(B$B$C(B$B$?(BRPM$B?t(B$BCM(B$B$H(B$BRPM$B$r(B$B8+(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$F(B$B!"(B$B2s(B$BE>(B$B@:(B$BL)(B$BEY(B$B$r(B$B3N(B$BG'(B$B$9(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$^(B$B$9(B$B!#(B($B9b(B$B@:(B$BL)(B$BEY(B$B$N(B$B6q(B$B8=(B$B2=(B)

$B#1(B$B#0(B$B!%(B$BEv(B$BSPIN MOTOR+POWER SUPPLY+SIMPLE CONTROLLER(BOARD)$B$G(B$B9=(B$B@.(B$B$5(B$B$l(B$B$F(B$B$$(B$B$F(B$B!"(B$B$^(B$B$k(B$B$G(BPC$B$r(B$B%"(B$B%C(B$B%W(B$B%0(B$B%l(B$B!<(B$B%I(B$B$9(B$B$k(B$B$h(B$B$&(B$B$K(B$B4J(B$BC1(B$B$J(B$B=$(B$BM}(B$B$,(B$B2D(B$BG=(B$B$K(B$B$J(B$B$j(B$B!"(B(2~3$B0J(B$BFb(B)$B$h(B$B$j(B$B0B(B$BA4(B$B$G(B$BJX(B$BMx(B$B$K(B$B;H(B$BMQ(B$B$9(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$^(B$B$9(B$B!#(B

$B#1(B$B#1(B$B!%(B$B%*(B$B%W(B$B%7(B$B%g(B$B%s(B$B!'(B$B%G(B$B%#(B$B%9(B$B%Z(B$B%s(B$B%5(B$B!<(B

$B!|(B$B!!(B$BDc(B$B2A(B$B3[(B$B!"(B$B4J(B$BC1(B$B$J(B$B@_(B$B7W(B

$B!!(B$B!!(B$B!|(B$B!!(B±1rpm$B$G(B$BM%(B$B$l(B$B$?(B$B2s(B$BE>(B$B@:(B$BL)(B$BEY(B

$B!!(B$B!!(B$B!|(B$B!!(B$B2s(B$BE>(B$B?t(B$BI=(B$B<((B$B!"(B$B?.(B$BMj(B$B@-(B$B$,(B$B9b(B$B$$(B$B(B$B?t(B$BI=(B$B<((B

$B!!(B$B!!(B$B!|(B$B!!(B$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B$O(B$B:G(B$BBg(B100$B%9(B$B%?(B$B%C(B$B%W(B$BF~(B$BNO(B$B2D(B$BG=(B

$B!!(B$B!!(B$B!|(B$B!!(B$B2s(B$BE>(B$BB.(B$BEY(B$B%"(B$B%C(B$B%W(B$B!"(B$B%@(B$B%&(B$B%s(B$B2D(B$BG=(B

$B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B Series

       High Precision spin coating systems (spin coater)

      Compact & desktop spin coater, High & controllable speed.
      Our spin coater, Simple step programming, High accuracy, Speed R.P.M is Up & down free,
      International Competitive price, 100 steps and 100 recipes stored.


   Dong Ah spin coater offers most high quality, portable spin coaters designed specifically for lab and R & D.
   The other spin coating activities.
   Our design is very compact as maintenance are very easy.
   An fifteen inch bowl and custom design are available.
   Our spin coater applies always uniform, piece free coatings with precision.

Features

1. Our spin coater, You can speed up and down freely 0 ~ 50 to 8,000 R.P.M.
2. The auto encoding function in this spin-coater guarantees you strong power and precision.
(applied and developed for the first time in history and exported all over the world in a great success.)
The encoding function in this spin-coater minimizes the chance of being out of order and makes A/S convenient. (The compact of inner and outer devices realized)
3. Adopted a motor which overcomes the speed limit of existing motors and gain a strong power and speed capacity of max 8,000 r.p.m.
4. Specialized enough to cover even a 18-inch ball and a 12-inch extra-large chuck (Option)
5. Most thinly produced in height, which enables you to use with ease globe box. (Height 200 mm : Min 180 mm possible)
6. Spin coater With 100 step and 100 programs (recipes), you can gain the data freely which you want.
7. The programs of the spin controller are made easy enough to be used by beginners. (Digitalized)
8. You can wash and clear balls very easily and conveniently.
9. Compared to foreign products, this spin coater costs a reasonable sum, considering a variety of functions and excellent capacity.
10. Safety device: If chuck and wafer & plate are not positioned in a vacuum, it will stop working. Developed and produced first for the safety of operators.

11. As you see both the initially-set R.P.M and the actual R.P.M numbers, you can check the degree of revolving precision every second. (attained high accuracy)

12. Spin coater Ball size is big enough for you to be excellent at spin-coating.
13. spin coater Option : Dispenser

High Precision spin coating systems (spin coater)

$B!i(B Specification ($B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B : ACE-1020S)

Wafer size(Max.)

1/2 ~ 4" diameter

Bowl size

8" Bowl

Bowl material

SUS 316

Special DC Motor

Up & Down free

Step

100

Memory storage

100 program

Rotation Speed

0 to 50 ~ 8,000 rpm (Option:10,000 rpm)

Hold Time

1~999sec

Accuracy

± 1 R.P.M under

acceleration, deceleration free

3,000 R.P.M/sec

Power Input

AC 110V, 220V, 50/60Hz

Vacuum Input

-450~-650mmHg (6mm ID / 8mm OD)

Display

LCD (Back Light)

System Controller

Digital Type (Microprocess)

Dimension (W X D X H)

320 X 420 X 180 (200) mm

The above spin coater is Glove Box Type to best spin coater

High Precision spin coating systems (spin coater)

$B!i(B Specification ($B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B : ACE-1020)

Wafer size(Max.)

8" diameter

Bowl size

15" Bowl

Bowl material

SUS 316

Special DC Motor

Up & Down free

Step

100

Memory storage

100 program

Rotation Speed

0 to 50 ~ 8,000 rpm (Option:10,000 rpm)

Hold Time

1~999sec

Accuracy

± 1 R.P.M under

acceleration, deceleration free

3,000 R.P.M/sec

Power Input

AC 110V, 220V, 50/60Hz

Vacuum Input

-450~-650mmHg (6mm ID / 8mm OD)

Display

LCD (Back Light)

System Controller

Digital Type (Microprocess)

Dimension (W X D X H)

470 X 590 X 180 (200)

$B!i(B Specification ($B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B : DA-1020S) Low price

Wafer size(Max.)

1/2 ~ 4" diameter

Bowl size

8" Bowl

Bowl material

SUS 316

Brushless DC Motor

Up & Down free

Step

100

Memory storage

50 program

Rotation Speed

500 ~ 8,000 rpm (Option:10,000 rpm)

Hold Time

1~999sec

Accuracy

± 1 %

Power Input

AC 110V, 220V, 50/60Hz

Vacuum Input

-450~-650mmHg (6mm ID / 8mm OD)

Display

LCD (Back Light)

System Controller

Digital Type (Microprocess)

Dimension (W X D X H)

320 X 420 X 180 (200) mm
The above spin coater is Glove Box Type to best spin coater

$B!i(B Specification ($B%9(B$B%T(B$B%s(B$B%3(B$B!<(B$B%?(B$B!<(B : DA-1020) Low price

Wafer size(Max.)	8" diameter
Bowl size	15" Bowl
Bowl material	SUS 316
Brushless DC Motor	Up & Down free
Step	100
Memory storage	50 program
Rotation Speed	500 ~ 8,000 rpm (Option:10,000 rpm)
Hold Time	1~999sec
Accuracy	± 1 %
Power Input	AC 110V, 220V, 50/60Hz
Vacuum Input	-450~-650mmHg (6mm ID / 8mm OD)
Display	LCD (Back Light)
System Controller	Digital Type (Microprocess)
Dimension (W X D X H)	470 X 590 X 180 (200)

Our spin coater Demonstration(Operation) is here click.

e-mail : da1020s@naver.com

Spincoater system Profiling (acceleration & deceleration free)

spin coater,spincoater,spinner

Reference Data to purchase for spin coater as follow :

1. SPIN COATER (MODEL: DA-1020, ACE-1020) : Using to vacuum chuck 5 to 8 inch is very good.

2. SPIN COATER (MODEL: DA-1020, ACE-1020S) : Using to vacuum chuck 4 inch under is very good.

e-mail : info@pcb21.co.kr

TEL: 82-2-868-0661(Dir) FAX: 82-2-868-0664

5FL Hark Ville,108 Guro-Gu,152-843,Seoul,korea

Manufacture by Dong Ah

.

Spin etcher & Spin Develoer & Stripper : Semi Auto-$B%;(B$B%_(B$B%*(B$B!<(B$B%H(B

$BEv(B$B $B@=(B$BIJ(B$B$O(B$B!"(B$B3F(B$B(B$BF3(B$BBN(BWafer$B!"(BSUS $BL>(B$BHD(B$B!"(BPCB $B%((B$B%C(B$B%A(B$B%s(B$B%0(B$BMQ(B($B8=(B$BA|(B$B5!(B$B!'(Betcher)$B$G(B$B;H(B$BMQ(B$B$,(B$B2D(B$BG=(B$B$G(B$B$"(B$B$j(B$B!"(B$BM%(B$B=((B$B$J(B$B?*(B$B9o(B$B6Q(B$B0l(B$B@-(B$B$r(B$BJ](B$B>c(B$B$9(B$B$k(B$B2s(B$BE>(B$B<0(B $B%9(B$B%W(B$B%l(B$B!<(B $B?*(B$B9o(B$BAu(B$BCV(B$B$G(B$B$9(B$B!#(B

$B3F(B$B $BLt(B$BIJ(B$B$K(B$BBP(B$B$7(B$B$F(B$BBQ(B$B2=(B$B3X(B$B@-(B$B$,(B$BM%(B$B$l(B$B$F(B$B$$(B$B$k(BPVC,PFA,SUS$B$J(B$B$I(B$B$r(B$B;H(B$BMQ(B$B$9(B$B$k(B$B$3(B$B$H(B$B$K(B$B$h(B$B$C(B$B$F(B$BM%(B$B=((B$B$J(B$BBQ(B$B5W(B$B@-(B$B$r(B$BJ](B$B>c(B$B$7(B$B$^(B$B$9(B$B!#(B

$B>e(B$BIt(B$B$+(B$B$i(B$B2<(B$BIt(B$B$G(B $BJ.(B$BL8(B$B$5(B$B$l(B$B$k(B$B?*(B$B9o(B$BMO(B$B1U(B$B$O(B$B!"(B$B=[(B$B4D(B$B$5(B$B$;(B$B:F(B$B;H(B$BMQ(B$B$5(B$B$l(B$B$k(B$B$7(B$B!"(B$B?*(B$B9o(B$B$N(B$B6Q(B$B0l(B$B@-(B$B$N(B$B$?(B$B$a(B$B!"(B$B<+(B$BF0(B$B$G(B$B2s(B$BE>(B$B$7(B$B$J(B$B$,(B$B$i(B$B%((B$B%C(B$B%A(B$B%s(B$B%0(B($B8=(B$BA|(B)$B5Z(B$B$S(B$B@v(B$B>t(B$B$7(B$B$^(B$B$9(B$B!#(B

$B"#(B$B!!(B$BFC(B$BD'(B$B!J(B$B2<(B$B5-(B$B;E(B$BMM(B$B$O(B$BCm(B$BJ8(B$B)

$B-!(B$B!!(B$B9b(B$B5i(B$B;E(B$BMM(B$B$N(B$B%9(B$B%W(B$B%l(B$B!<(B$B%((B$B%C(B$B%A(B$B%s(B$B%0(B($B8=(B$BA|(B)$B;~(B$B4V(B$B5Z(B$B$S(B$B29(B$BEY(B$B@_(B$BDj(B$B$b(B$B2D(B$BG=(B$B$G(B$B$9(B$B!#(B

$B!!(B$B!!(B$B!!(B$B!v(B$B!!(B$B%G(B$B%8(B$B%?(B$B%k(B$B29(B$BEY(B$BD4(B$B@a(B$B5!(B$B$G(B70$B!n(B$B;k(B$B$^(B$B$G(B$BD4(B$B@a(B

$B!!(B$B!!(B$B!!(B$B!v(B$B!!(B$B%G(B$B%8(B$B%?(B$B%k(B$B%?(B$B%$(B$B%^(B$B!<(B$B$G(B$B%((B$B%C(B$B%A(B$B%s(B$B%0(B($B8=(B$BA|(B)$B;~(B$B4V(B$BD4(B$B@a(B

$B!!(B$B!!(B$B!!(B$B!v(B$B!!(B$B%9(B$B%T(B$B%s(BR.P.M $BD4(B$B@a(B

$B-"(B$B!!(B$B($B%*(B$B%W(B$B%7(B$B%g(B$B%s(B$B!'(B$B0d(B$B4~(B$BMQ(B$B$G(B$B6!(B$B5k(B$B$7(B$B$^(B$B$9(B)

$B-#(B$B!!(B150mm×150mm$BBg(B$B$-(B$B$5(B$B4p(B$BHD(B$B$N(B$B%((B$B%C(B$B%A(B$B%s(B$B%0(B$B$,(B$B2D(B$BG=(B$B$G(B$B$9(B($B%*(B$B%W(B$B%7(B$B%g(B$B%s(B$B!'(B8.12$B%$(B$B%s(B$B%A(B$B;H(B$BMQ(B$B!'(Bend

user$B%?(B$B%$(B$B%W(B$B$G(B$B6!(B$B5k(B

$B-$(B $B

$B-%(B $B%I(B$B%l(B$B!<(B$B%s(B$B%Y(B$B%k(B$B%V(B$B$G(B$BLt(B$BIJ(B$B$N(B$B8r(B$B49(B$B5Z(B$B$S(B$B=|(B$B5n(B$B$,(B$BMF(B$B0W(B$B$G(B$B$9(B$B!#(B

$B%*(B$B%W(B$B%7(B$B%g(B$B%s(B$B!'(B$B;n(B$BNA(B(Sampling Methodl)$B$r(BVacuum Chuck$B$G(B$B??(B$B6u(B$B$r(B$BJa(B$B$^(B$B$l(B$B$P(B$B!"(B$B:G(B$BBg(B1.600$B!A(B8.000

R.P.M$B$^(B$B$G(B$B2s(B$BE>(B$B$9(B$B$k(B$B$3(B$B$H(B$B$,(B$B=P(B$BMh(B$B$^(B$B$9(B($B%=(B$B%m(B$B%C(B$B%H(B$B@8(B$B;:(B$BMQ(B$B!"(B$B8&(B$B5f(B$BMQ(B$B!'(BA/S 3$BF|(B$B0J(B$BFb(B$B=h(B$BM}(B)

$BEv(B$B(Spin etcher$B!"(B $B%^(B$B%9(B$B%/(B$B@v(B$B>t(B$BAu(B$BHw(B$BMQ(B$BEY(B$B$G(B$B;H(B$BMQ(B$B2D(B$BG=(B) $B%=(B$B%m(B$B%C(B$B%H(B$B@8(B$B;:(B$BMQ(B$B!"(B$B8&(B$B5f(B$BMQ(B$BAu(B$BHw(B$B$G(B$B;H(B$BMQ(B$B!*(B

Model:SD-0627($BBQ(B$B;@(B$B@-(B$BMQ(B$B!'(BPVC),SD-0430($B0d(B$B4~(B$BMQ(B$B!'(BSUS

spin developer, spin etcher, ??????, ????, ???, SPIN ETCHER, spin developer, ????, ?????? ??????, spin developer, ?? ????, ????, stripper

SPIN ETCHER, spin developer, ????, ?????? $B!!(B$B!!(B$B!!(B$B!!(B spin developer, ?? ????, ???, ??????, spindeveloper spin developer, spin etcher, ??????, ????, ???, SPIN ETCHER, spin developer, ????, ?????? $B!!(B$B!!(B$B!!(B

$B>e(B$B5-(B$B@=(B$BIJ(B$B$O(B$B%9(B$B%T(B$B%s(B$B%[(B$B%k(B$B%@(B$B!<(B$BMQ(B$B$G(B$B$"(B$B$j(B$B!"(B Vacuum Chuck$B$b(B$B;H(B$B$&(B$B$3(B$B$H(B$B$,(B$B$G(B$B$-(B$B$k(B$B$h(B$B$&(B$B$K(B$B6!(B$B5k(B$B$b(B$B$7(B$B$^(B$B$9(B$B!#(B

TEL:02-868-0661($BBe(B)

TEL:(02)868-0661(Dir)$B!!(B$B!!(B$B!!(B FAX:(02)868-0664

5FL Hark Ville,108 Guro-Gu,152-843,Seoul,korea

We have a case unlike the real thing to a product of a photograph.

Model $B!'(B DAS-401

Feature$B#s(B

It corresponds to the acid and the solvent by two kinds of body materials. (Please consults with$B!!(Bus when$B!!(Byou$B!!(Bwill$B!!(Bstudy. The photo is PVC body. )
Multipurpose equipment that can be used for etching, cleaning, development, stripping$B!"(B dry $B!"(Betc.

Specification$B#s(B

Substrate size	$B&5(B2 inch $B!A(B $B&5(B8 inch
Clean unit	HEPA filter as standard
Clean	Spin clean and (Brush or MS User choose)
Spindle motor	DC Motor
Range of revolution speed	100-5000 rpm
Revolution speed setting	Volume
Revolution speed display	Analog
Acid specification	Acid and alkali type

Solvent specification	IPA . Various solution such as acetones
Option$B#s(B	High-pressure jet nozzle and chemical nozzle , Filter,etc.
DIW.	RC$B#3(B$B!?(B$B#8(Binch
Power supply	$B#A(B$B#C(B100$B#v(B$B!!(B$B#o(B$B#r(B200v$B!!(B10$B#A(B$B!!(B50/60$B#H(B$B#z(B$B!!(B±$B#1(B$B#0(B$B!s(B
EXH.	$B&5(B50$B#m(B$B#m(B$B!!(BPVC.

TEL : 02-868-0661 ($BBe(B)

pcb21@korea.com

TEL:(02)868-0661(Dir)$B!!(B$B!!(B$B!!(B FAX:(02)868-0664 e-mail : info@pcb21.co.kr

5FL Hark Ville,108 Guro-Gu,152-843,Seoul,korea

$B%b(B$B%G(B$B%k(B$B!'(BACE(DAC)-1020S$B!!(B(1/2~4$B%$(B$B%s(B$B%A(B$B0J(B$B2<(B$B:G(B$BE,(B$B!'(B$B%0(B$B%m(B$B!<(B$B%V(B$B%\(B$B%C(B$B%/(B$B%9(B$B$K(B$B$b(B$B:G(B$BE,(B$B!'(B$B30(B$B7A(BCompact$B2=(B$B6q(B$B8=(B)

$B%b(B$B%G(B$B%k(B	ACE(DAC)-1020S	$BEE(B$B!!(B$B8;(B	AC 220$BKt(B$B$O(B100V 50V/60Hz
$B%5(B$B%$(B$B%:(B	Ø$B!!(B1/2~4$B%$(B$B%s(B$B%A(B max
$B2s(B$BE>(B$B?t(B	Ø$B!!(B$BKt(B$B$O(B50$B!A(B8,000	$B30(B$B7A(B$B@#(B$BK!(B	300 W×400 D×200 H
$B2s(B$BE>(B$B@:(B$BEY(B	±$B#1(Brpm($B0l(B$BDj(B$B2s(B$BE>(B$B!"(B$BL5(B$BIi(B$B2Y(B$B;~(B)	$B??(B$B6u(B$B%](B$B%s(B$B%W(B	-450~$B!](B650 Hg (Oil less vaccum Pump)
$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B5!(B$BG=(B	100$B%9(B$B%?(B$B%C(B$B%W(B×100(Reccip,$B2s(B$BE>(B$B?t(B$B!](B$B;~(B$B4V(B(999.9sec) R.P.M 10$BC1(B$B0L(B$B@_(B$BDj(B	$B0B(B$BA4(B$BAu(B$BCV(B	Vacuum$B$J(B$B$7(B$B$K(B$B%9(B$B%T(B$B%s(B$BIT(B$B2D(B$BG=(B($B;H(B$BMQ(B$B)
$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B5!(B$BG=(B		$B%*(B$B%W(B$B%7(B$B%g(B$B%s(B	$B%G(B$B%#(B$B%9(B$B%Z(B$B%s(B$B%5(B$B!<(B

$B%b(B$B%G(B$B%k(B$B!'(BACE(DAC)-1020$B!!(B($B:G(B$BBg(B8$B%$(B$B%s(B$B%A(B)

$B%b(B$B%G(B$B%k(B	ACE(DAC)-1020	$BEE(B$B!!(B$B8;(B	AC 220$BKt(B$B$O(B100V 50V/60Hz
$B%5(B$B%$(B$B%:(B	Ø$B!!(B1/2$B!A(B$B#8(B$B%$(B$B%s(B$B%A(B max
$B2s(B$BE>(B$B?t(B	Ø$B!!(B$BKt(B$B$O(B50$B!A(B8,000	$B30(B$B7A(B$B@#(B$BK!(B	470 W×590 D×200 H
$B2s(B$BE>(B$B@:(B$BEY(B	±$B#1(Brpm($B0l(B$BDj(B$B2s(B$BE>(B$B!"(B$BL5(B$BIi(B$B2Y(B$B;~(B)	$B??(B$B6u(B$B%](B$B%s(B$B%W(B	-450$B!A(B-650 Hg (Oil less vaccum Pump)
$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B5!(B$BG=(B	100$B%9(B$B%?(B$B%C(B$B%W(B×100(Reccip,$B2s(B$BE>(B$B?t(B$B!](B$B;~(B$B4V(B(999.9sec) R.P.M 10$BC1(B$B0L(B$B@_(B$BDj(B	$B0B(B$BA4(B$BAu(B$BCV(B	Vacuum$B$J(B$B$7(B$B$K(B$B%9(B$B%T(B$B%s(B$BIT(B$B2D(B$BG=(B($B;H(B$BMQ(B$B)
$B%W(B$B%m(B$B%0(B$B%i(B$B%`(B$B5!(B$BG=(B		$B%*(B$B%W(B$B%7(B$B%g(B$B%s(B	$B%G(B$B%#(B$B%9(B$B%Z(B$B%s(B$B%5(B$B!<(B
