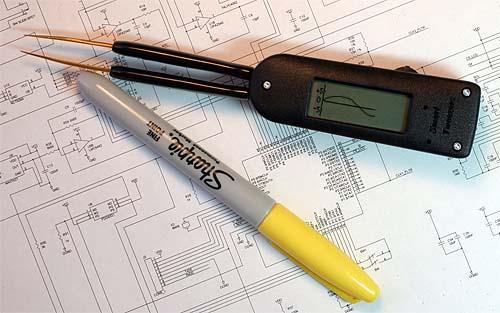

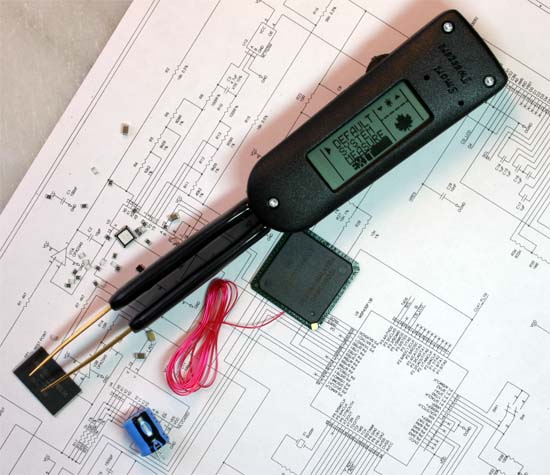

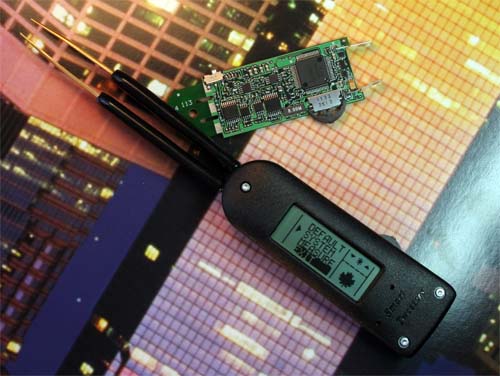

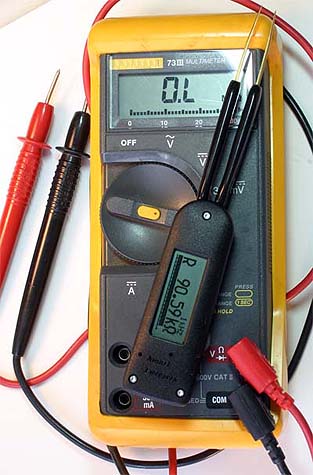

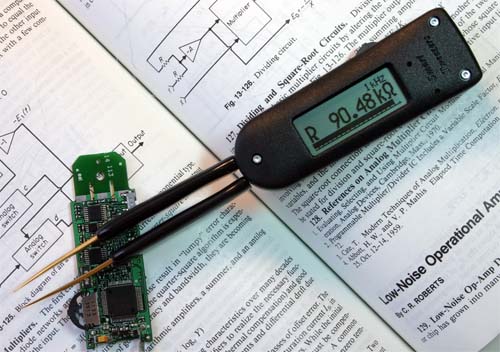

Smart Tweezers is an R-L-C meter in a set of tweezers. Smart
Tweezers features a unique patented mechanical and electronic design that
incorporates a built-in direct precision SMD probe designed for component
evaluation on the production line, component impedance testing and
sortingof SMD components.
Smart Tweezers dramatically cuts the time necessary to troubleshoot and
debug a complex PCB making process of locating of a faulty component a
breeze.
The integrated SMD probe and graphic display, combined with
automatic recognition of measurement modes (R, C, and L) and the range of
measurement, allow the operator to focus on the component under test.As a result, testing, sorting and evaluation of components
become more efficient and cost effective.

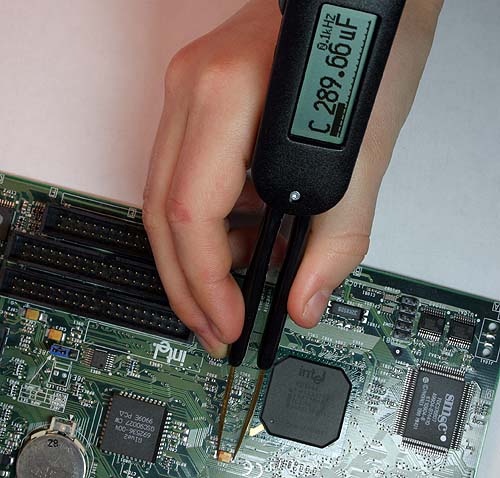

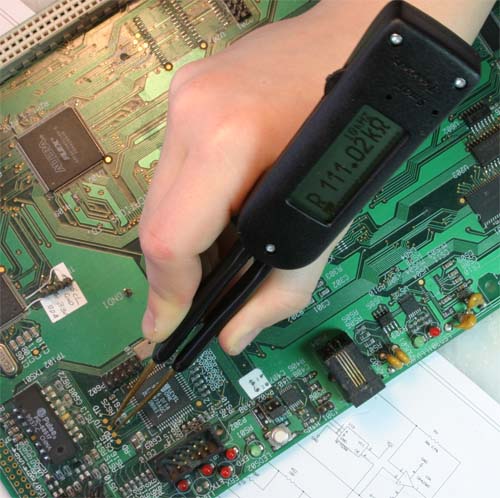

Inductance, Capacitance, Resistance
The primary display shows the present reading. The secondary
display (on top) shows the present reading of additional parameters or
measurement conditions when the primary display shows some other feature (L, C).
When multiple features present, the secondary display shows one of the values.
The Bar Graph provides an analog indication of the measured input.
Voltage
The Smart Tweezers is able to measure voltage. In the
AUTO MODE, it measures DC voltage from 100µV to 800mV. In the TRACE MODE, it
shows an oscilloscope-like picture of AC voltage.
Continuity/Open Test
The Smart Tweezers is designed to measure continuity.
The beeper sounds for resistance readings below the threshold, or to indicate a
momentary open circuit.
Durable Probes
Tweezerstips are made of gold-plated
non-magnetic stainless steel.
Ergonomic Design and Convenient Controls
Smart Tweezers features a JOG DIAL button to choose modifiers for a selected
function or change the setting. Rotate the JOG DIAL button to choose from a list
of functions, then press to activate this function and see it appear on the
display.
|
