Most Compact spin coater, High & controllable speed. (Most control unit for the local maintenance & A/S very easy) Our
spin coater, Simple step
programming, High accuracy, Speed R.P.M is Up & down free, The
operation is very easy & powerful quick break in High R.P.M
as that strong motor in our spin coater for various application.
(Top series) International Competitive price, 100 steps and 100 recipes stored.
Dong Ah spin
coater offers most high quality, portable spin coaters designed
specifically for lab and R & D.
Our design is very compact as maintenance are very easy.
The custom design is available.
Our spin coater applies always uniform, piece free coatings with precision.
1. Our
spin coater, You can speed up and down freely 0
~ 50 to 8,000 R.P.M. (Option: 10,000 R.P.M) 2. The auto encoding function in this spin-coater guarantees you strong power and precision. (applied and developed for the first time in history and exported all over the world in a great success.) The encoding function in this spin-coater minimizes the chance of being out of order and makes A/S convenient. (The compact of inner and outer devices realized)
3. Adopted a motor which overcomes the speed limit of existing motors and gain a strong power and speed capacity of max 10,000 r.p.m. 4. Specialized enough to cover even a 18-inch ball and a 12-inch extra-large chuck (Option)

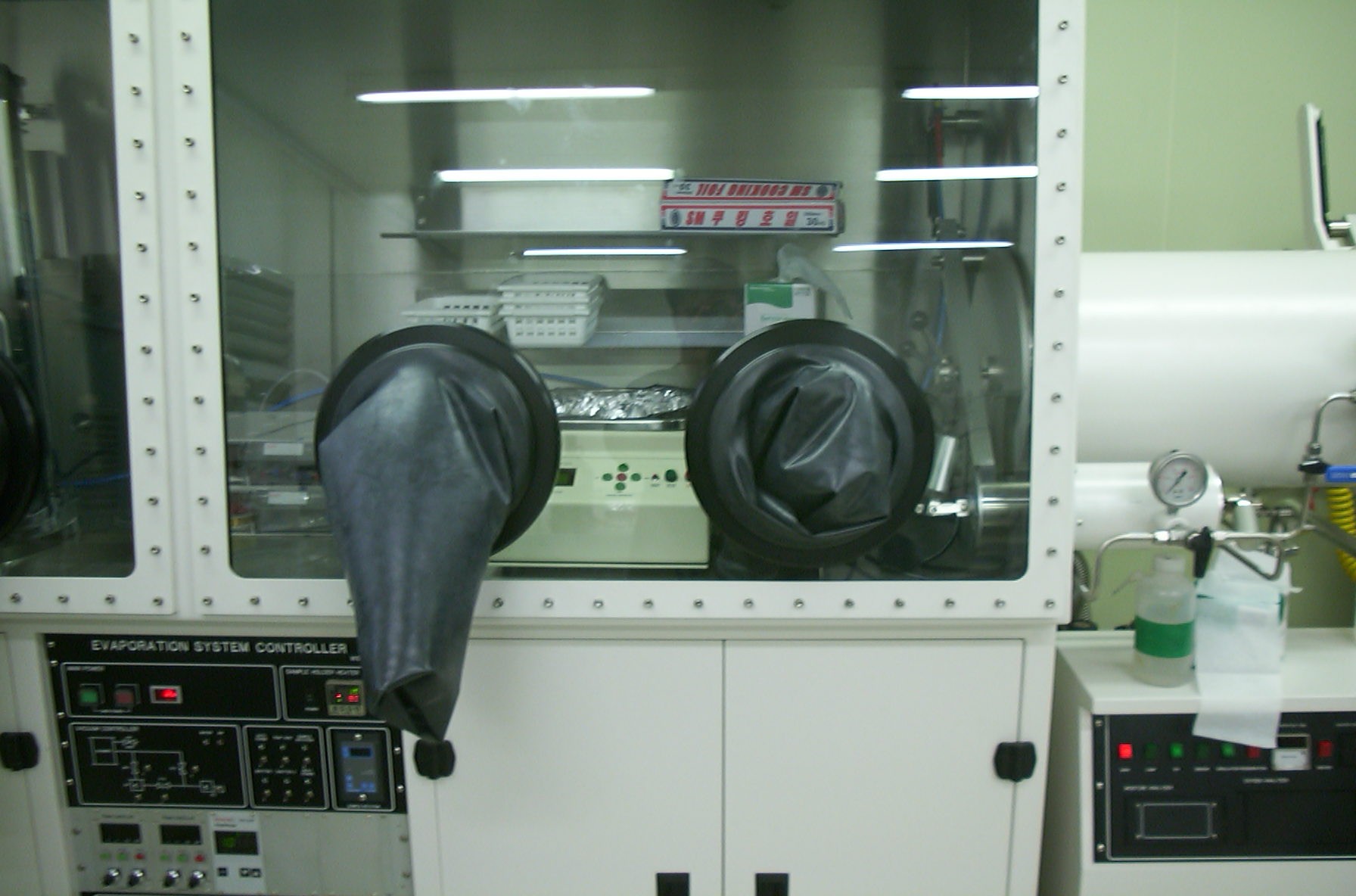

5. Most thinly produced in height, which enables you to use with ease globe box. (Height 220 mm)
6. Spin
coater With 100 step and 100 programs (recipes), you can gain the data freely which you want.
7. The programs of the spin controller are made easy enough to be used by beginners. (Digitalized)
8. You can wash and clear balls very easily and conveniently.
9. Compared to foreign products, this spin coater costs a reasonable sum, considering a variety of functions and excellent capacity.
10. Safety device: If chuck and wafer & plate are not positioned in a vacuum, it will stop working. Developed and produced first for the safety of operators.
11. As you see both the initially-set R.P.M and the actual R.P.M numbers, you can check the degree of revolving precision every second. (attained high accuracy)
12. Spin
coater Bowl size is big enough for you to be excellent at spin-coating.

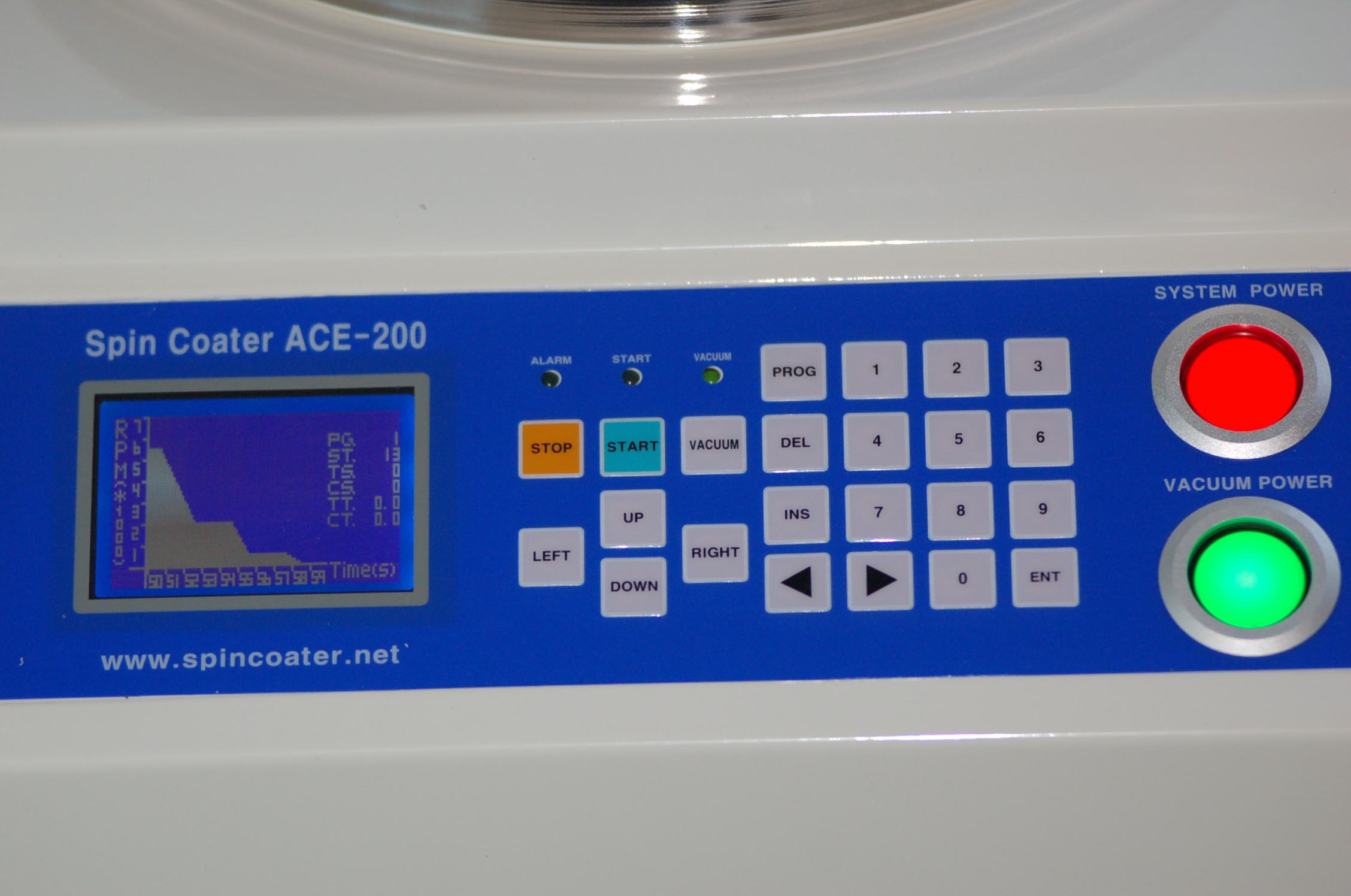

The above spin coater series is available check to real time to steps change with Graphic or character.

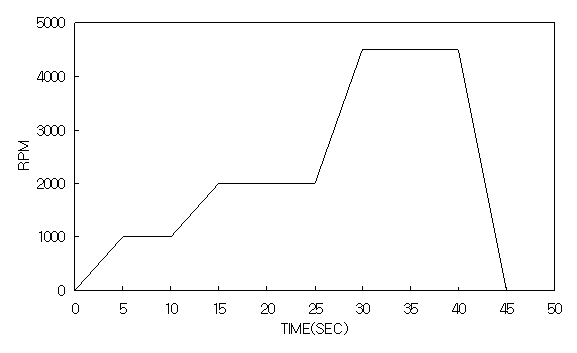

Spincoater system Profiling (acceleration & deceleration free)
Reference Data to purchase for spin coater as follow :
1. SPIN COATER (MODEL: ACE-1200) : Using to vacuum chuck piece to 12 inch is very good.

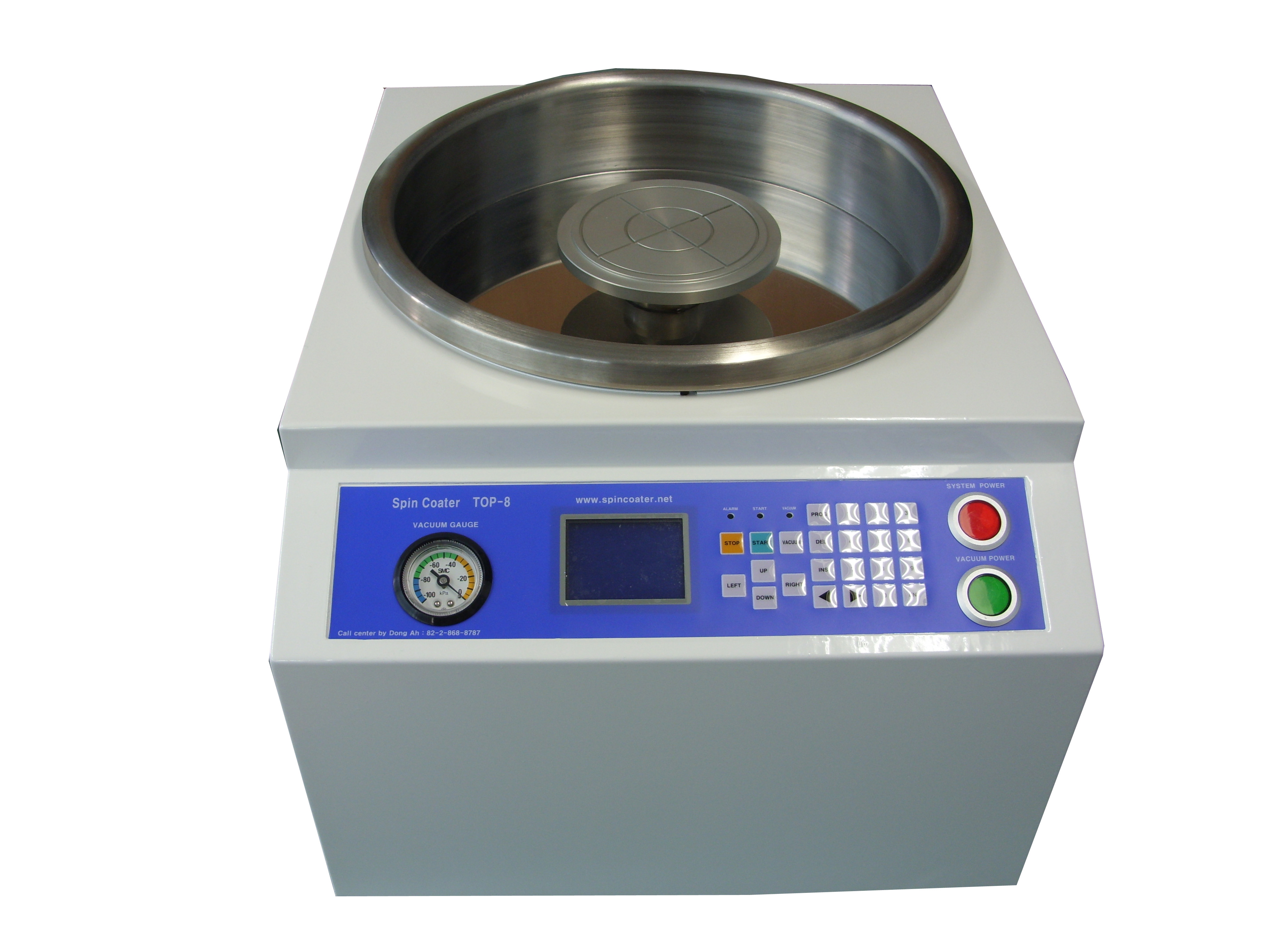

2. SPIN COATER (MODEL: TOP-8) : Using to vacuum chuck piece to 8 inch is very good.

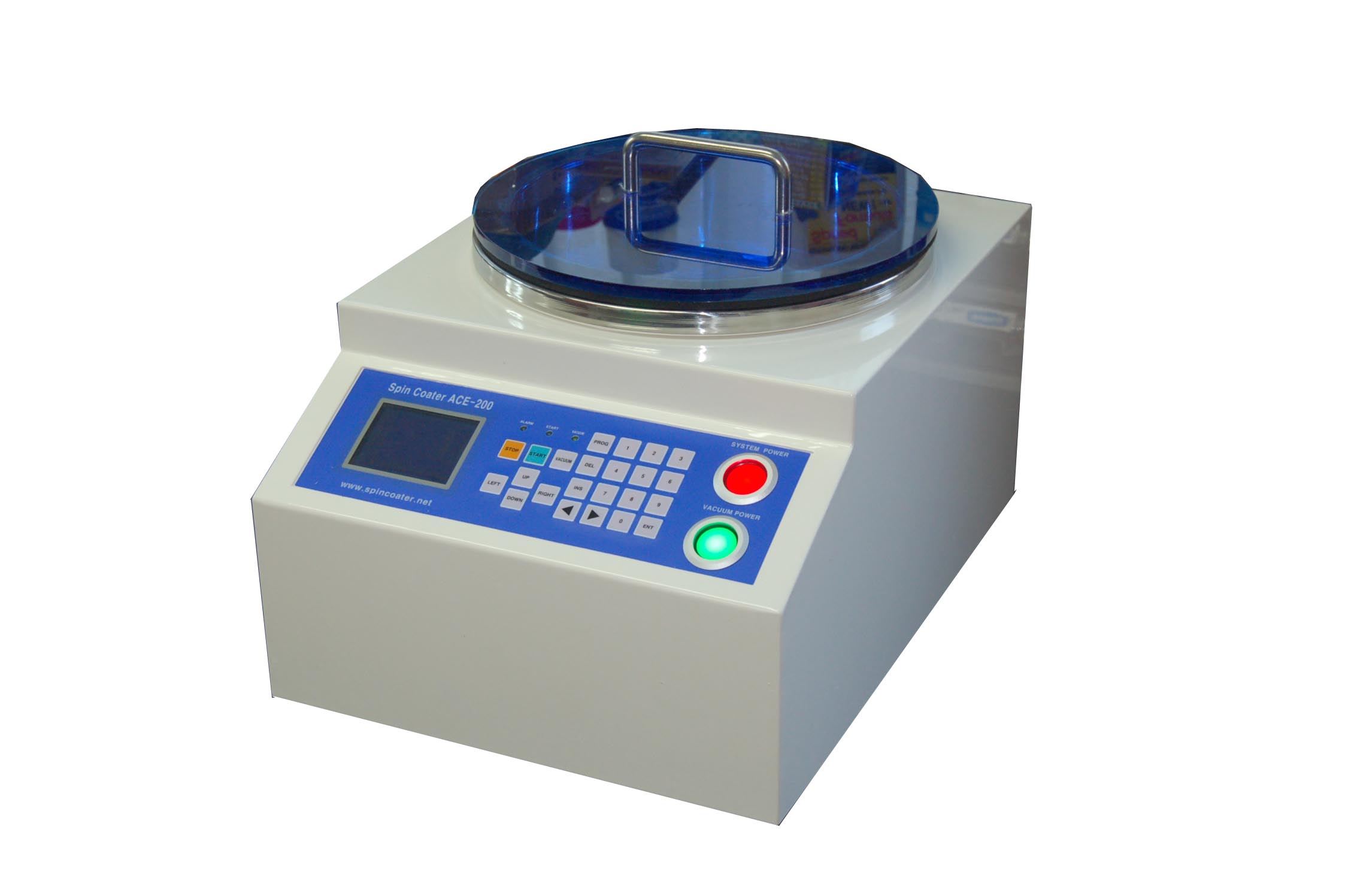

3. SPIN COATER (MODEL: ACE-200) : Using to vacuum chuck piece to 4 inch under is very good.
Our spin coater A/S is very simple(easy) to inside structure that only special spin motor + power supply + simple controller (Main board).
Therefore if your problem to our supply to local change (very easy : motor or power supply or control board). of course operation is very easy but fuction is very high quality.
