(Hot Mounting Press Machine)



 (Hot mounting)



DCXQ1500 Vacuum Cold Mounting Device.
CXQ1500 Vacuum Cold Mounting Device

Detailed Description

CQX1500 vacuum cold mount device is designed for making quality cold mount without gas bulbs, especially for mounting precion IC and small electronic sample.

CQX1500 comes with vacuum pump and glass vacuum tighten jar.  Operation procedures are as the follows:

  • Place sample  with cold mount mould into the vacuum jar, and target injection tube to the mould ( cold injection tube switch )
  • Start vacuum pump to allow all gas to come out the jar,
  • Insert injection tube to cold mount liquid bottle
  • Target the inject tube to sample to mount, and open switch on the tube
  • Then, cold mount liquid will flow into the mould inside vacuum jar
  • Close switch when mounting is full
  • You will get a gas bulb free precision cold mount sample

Specifications:

  • Power:  110V / 240V AC, 100W
  • Vacuum:  -0.09 MPa
  • Glass Vacuum Jar:  200 mm in diameter
  • Dimension:  300mm x340mm x250mm
  • Net Weight:    32kgs



 (Hot mounting)



MP300 Mounting Press for Metallographic Samples
MP300 Mounting Press for Metallographic Samples

Detailed Description

MP300 automatic mounting press is used to encapsulate samples for metallographic preparation. One mounts can be produced at one time using the mold spacer at 22 mm diameter. The one cycle time is up to 30 minutes.

  • Technical Specifications



    Item

    Unit

    Parameter

    Power

    W

    Up to 700

    Voltage

    V

    AC 110 V

     (AC 220V  is available as an option)

    Temperature Control Range

    o C

    100 - 180

    Time control Range

    Min.

    1 - 30

    Pressure control



    Hand wheel with  Pressure ready sensor

    Compression Mold

    mm

    Standard: D22xH15

    Machine Dimension

    mm

    400x290x400

    Machine Net weight

    Lb.

    72.6

 ̾Ƹ Ŀͱ(Diamond SAW) ø Ŭ ֽʽÿ.

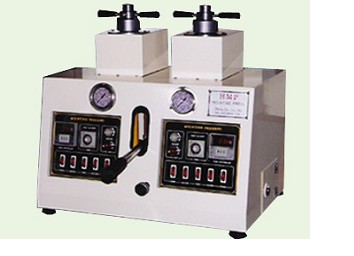

Semi Automatic (CH-1), Full Automatic (CH-2)



hot mounting press,ָ

hot mounting press,ָ





1. Type : ڵ



  л±ɸ ̰ System ڵ

Դϴ



- : 200v 60Hz ܻ



-Watt : 750W (AL.ֹ Ÿ)



-ִ з : 400kg/cm2



-µ : MAX 399°C



-µ : 160 ~ 200°C



-¿µð : 8 ~ 10



-µ Control : Auto Digital Temp.



- ũ : 25 ~ 50(mm)   * ֹ



-Mold ð : Water Cooling



-Ű Cylinder : (ü)ϰ

                    Pipe



-ũ : 350W X 400D X 610H(mm)





2. Type : ()



- : 220v 60Hz



-Watt : 500W ( Heater)



-ִ з : 400kg/cm2



-µ : ٿŸ µ



-Mold ð : ð AL. Mold ð



-ũ : 350W X 400D X 550H(mm)



* Line ü ȵ



 TEL : 02-868-0661 ()



 Mounting Press

Metamount - 2

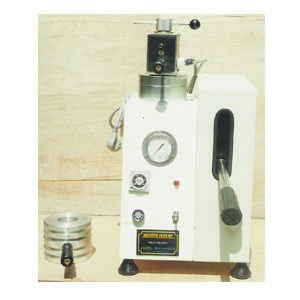

Hydraulic Specimen Mounting Press
    Manual operation
    1", 1 ¼ ," 1 ½, " and 2" Mold capacity
    Duplex mold
    Fast 1000 watts mold heater
    Digital Temperature / Timer control Unit with LED display
    Hydraulic application with direct reading pressure gauge
    Alarm indicator for cycle completion




Metamount - 3
Automatic Pneumatic Specimen Mounting Press
    Automatic operation
    1", 1 ¼," 1 ¼ ," and 2" mold capacity*
    Duplex mold
    Fast 1250 watts mold heater unit with water - cooling
    Digital Temperature / Timer control Unit with LED display
    Feather touch control panel
    Pneumatic application with direct reading pressure gauge
    Alarm indicator for cycle completion


Metmount - 4
Automatic Specimen Mounting Press
    Fully automatic operation
    Pneumatic application
    1", 1 ¼," 1 ¼ ," and 2" mold capacity*
    Duplex mold
    Fast 1250 watts mold heater
    Automatic cooling and preload
    Programmable micro control unit with LCD display
    Feather touch control panel
    Alarm indicator for cycle completion

Metmount - 5
Automatic Electro Hydraulic Specimen Mounting Press
    Fully automatic operation
    1", 1 ¼," 1 ¼ ," and 2" mold capacity*
    Duplex mold
    Fast 1250 watts mold heater
    Automatic cooling and preload
    Programmable micro control unit with LCD display
    Feather touch control panel
    Alarm indicator for cycle completion
